Pakyawan OEM/ODM WDA-111-xx-x Crossed roller slewing ring panlabas na gear

Bahay / produkto / Slewing Bearings / WDA-111-xx-x Crossed roller slewing ring panlabas na gear

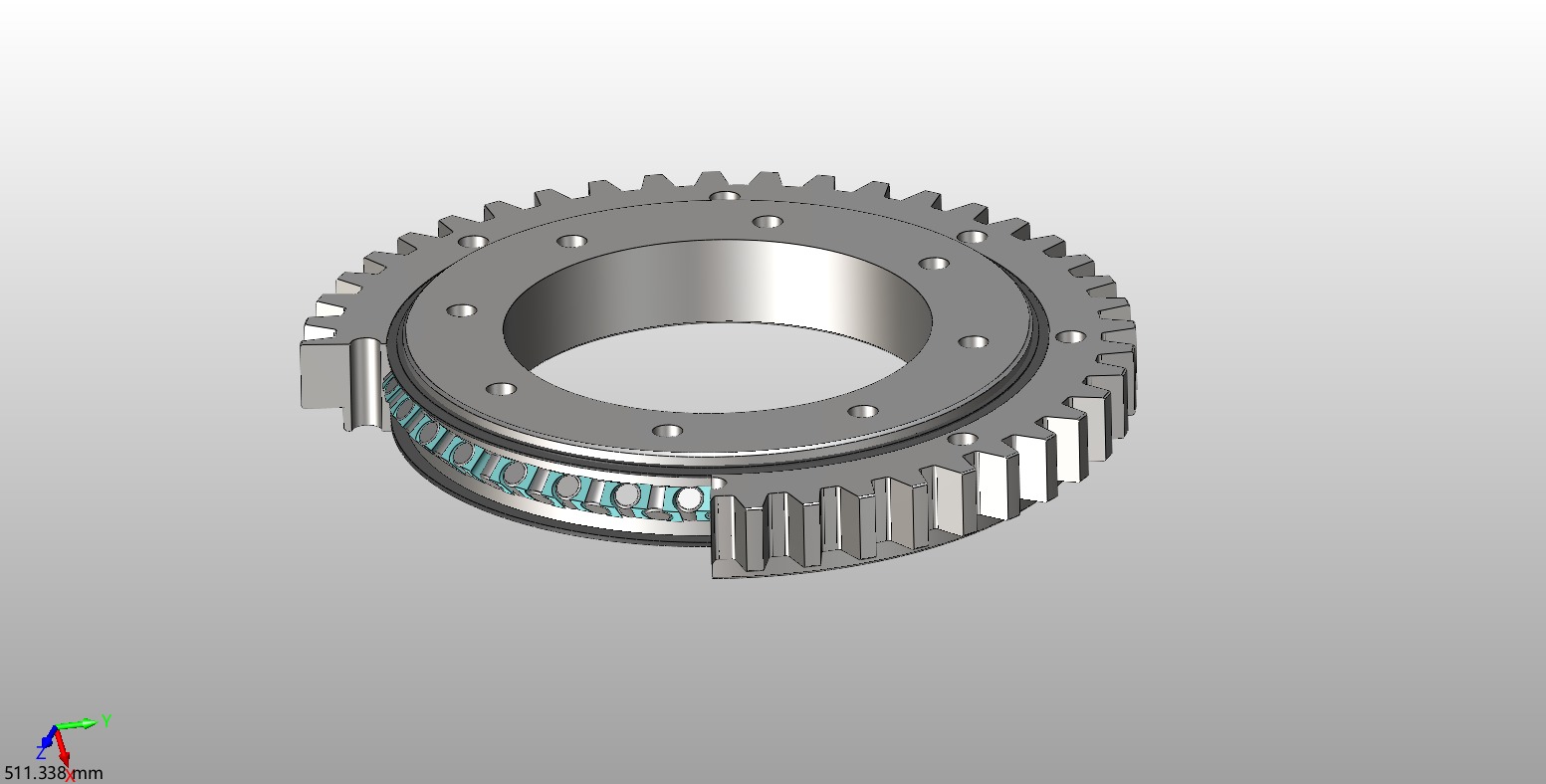

WDA-111-xx-x Crossed roller slewing ring panlabas na gear

Mga tip para sa pagpapadulas ng slewing bearing:
1. Ang slewing-bearing raceway ay dapat na lubricated pana-panahon. Sa pangkalahatan, ang ball bearing ay dapat lagyan ng gatong isang beses bawat 100h, ang roller bearing ay dapat lagyan ng gatong isang beses bawat 50h, at ang lubrication cycle ay dapat paikliin para sa tuluy-tuloy na pagtatrabaho o mga espesyal na kapaligiran sa pagtatrabaho tulad ng mga tropikal na zone, mataas na kahalumigmigan, mas maraming alikabok, at malaking temperatura pagkakaiba.
2. Dapat na regular na tanggalin ang mga sari-sari sa ibabaw ng ngipin ng slewing bearing, at dapat na lagyan ng lubricating grease.
+86-513-80311111 / +86-15050632597
makipag-ugnayan sa amin
PREV: WDC-110-xx-x Crossed roller slewing ring na walang gear SUSUNOD:WDB-111-xx-x Crossed roller slewing ring panlabas na gear
  • Parameter

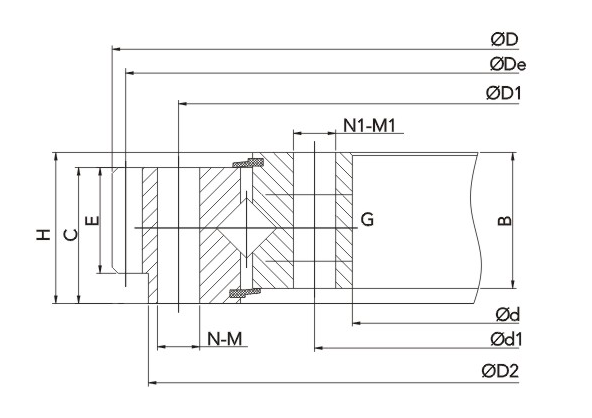

  • Mga sukat
  • Kumuha ng Libreng Quote

Bearing No. Dimensyon(mm) Timbang (kg) Ref. Hindi.
d d1 D D2 D1 C E H B N-M N1-M1 De m Z X G
WDA-111-0254-01 180 210 342 324 300 35 30 42 35 24-Φ13 (24-3)-M12 336 3 112 0 0/2-M10*1 14.9 111.14.0254.A
WDA-111-0308-01 235 259 403.5 380 358 47 39 55 45 24-Φ13 (28-1)Φ13 396 4.5 88 0 2-ZG1/4 24 1797/235
WDA-111-0400-01 318 352 504 480 448 50 44 60 50 12-Φ15/M14 12-Φ15/M14 500 4 125 -0.5 2-M8*1 46 JW□400.12A
WDA-111-0450-01 368 402 556 530 498 50 44 60 50 12-Φ15/M14 12-Φ15/M14 552 4 138 -0.5 2-M8*1 52 JW□450.12A
WDA-111-0467-01 372 400 574 562 534 50 35 60 50 20-Φ18 20-Φ18 570 2 285 0 0/1-M8*1 60 111.20.0467.A
WDA-111-0500-01 398 434 629 602 566 65 60 75 65 20-Φ18/M16 20-Φ18/M16 615 5 123 0.5 4-M10*1 80 111.25.500
WDA-111-0500-02 418 452 610 580 548 50 44 60 50 14-Φ15/M14 14-Φ15/M14 605 5 138 -0.5 4-M10*1 58 JW□500.12A
WDA-111-0560-01 458 494 689 662 626 65 60 75 65 20-Φ18/M16 20-Φ18/M16 675 5 135 0.5 4-M10*1 90 111.25.560
WDA-111-0560-02 478 512 670 640 608 50 44 60 50 14-Φ15/M14 14-Φ15/M14 665 5 133 -0.5 4-M10*1 66 JW□560.12A
WDA-111-0560-03 464 502 685 654 618 60 50 70 60 14-Φ17/M16 14-Φ17/M16 680 5 136 -0.5 4-M10*1 79 JW□560.14A
WDA-111-0588-01 506 541 684 650 631 47 42 53 47 24-M12 (24-1)-Φ14 672 6 112 0 1-M10*1 60 011.20.0588 A
WDA-111-0630-01 528 564 772.8 732 696 65 60 75 65 24-Φ18/M16 24-Φ18/M16 756 6 126 0.5 4-M10*1 100 111.25.630
WDA-111-0630-02 534 572 755 724 688 60 50 70 60 16-Φ17/M16 16-Φ17/M16 750 5 150 -0.5 4-M10*1 88 JW□630.14A
WDA-111-0677-01 574 604 816 781 753 74 65 90 71 18-Φ22 18-Φ22 792 6 132 1 3-M10*1 125 111.25.675.03K
WDA-111-0695-01 545 611 920 867 805 122 90 132.5 122 40-Φ30 35-M27 900 10 90 0 4-G1/4 290 LY-8013
WDA-111-0710-01 608 644 850.8 812 776 65 60 75 65 24-Φ18/M16 24-Φ18/M16 834 6 139 0.5 4-M10*1 110 111.25.710
WDA-111-0710-02 614 652 840 804 768 60 50 70 60 18-Φ17/M16 18-Φ17/M16 834 6 139 -0.5 4-M10*1 101 JW□710.14A
WDA-111-0710-03 608 644 846 812 776 65 60 75 65 24-M16 24-心18 834 6 139 0 4-M10*1 118 111.25.710.12K
WDA-111-0776-01 664 705 929.6 890 847 65 60 75 65 36-Φ22 (36-1)-中22 920 8 115 -0.4 4-M10*1 133 1797/664
WDA-111-0800-01 678 722 966.4 922 878 72 65 82 72 30-Φ22/M20 30-Φ22/M20 944 8 118 0.5 6-M10*1 170 111.28.800
WDA-111-0800-02 704 742 936 894 858 60 50 70 60 20-Φ17/M16 20-Φ17/M16 928 8 116 -0.5 6-M10*1 114 JW□800.14A
WDA-111-0800-03 692 736 952 904 864 68 58 78 68 18-Φ22/M18 18-Φ22/M18 944 8 118 -0.5 6-M10*1 147 JW□800.18A
WDA-111-0800-04 678 722 968 922 878 72 65 82 72 30-Φ22 30-Φ22 944 8 118 0.5 6-M10*1 161 111.28.800.12
WDA-111-0823-01 715 753 979 935 893 84 63 100 84 28-Φ22 28-Φ22 940 10 94 0.95 4-M10*1 173 1797/715
WDA-111-0900-01 778 822 1062.4 1022 978 72 65 82 72 30-Φ22/M20 30-Φ22/M20 1040 8 130 0.5 6-M10*1 190 111.28.900
WDA-111-0900-02 792 836 1060 1004 964 68 58 78 68 20-Φ22/M18 20-Φ22/M18 1050 10 105 -0.5 6-M10*1 168 JW□900.18A
WDA-111-0987-01 885 925 1096 1056 1032 70.5 62.5 83 75 16-M16 16-Φ17.5 1080 8 135 0 3-M10*1 172 E1792/885K
WDA-111-1000-01 878 922 1188 1122 1078 72 65 82 72 36-Φ22/M20 36-Φ22/M20 1160 10 116 0.5 6-M10*1 210 111.28.1000
WDA-111-1000-02 892 936 1160 1104 1064 68 58 78 68 24-Φ22/M18 24-Φ22/M18 1150 10 115 -0.5 6-M10*1 185 JW□1000.18A
WDA-111-1000-03 876 926 1170 1120 1074 80 70 90 80 24-Φ24/M22 24-Φ24M22 1160 10 116 -0.5 6-M10*1 232 JW□1000.22A
WDA-111-1025-01 885 935 1180 1150 1115 100 80 115 100 16-Φ18 16-Φ18 1170 5 234 0 4-M8*1 330 1797/885G
WDA-111-1117-01 984 1035 1289.5 1242 1198 97.5 82.5 107.5 98 60-Φ25 58-Φ25 1250 10 125 1 1-M10*1 327 111.32.1117.A
WDA-111-1120-01 998 1042 1298 1242 1198 72 65 82 72 36-Φ22M20 36-Φ22/M20 1270 10 127 0.5 6-M10*1 230 111.28.1120
WDA-111-1120-02 996 1046 1308 1240 1194 80 70 90 80 28-Φ24/M22 28-Φ24/M22 1296 12 108 -0.5 6-M10*1 275 JW□1120.22A
WDA-111-1250-01 1110 1163 1449.6 1390 1337 81 75 91 81 40-Φ26/M24 40-Φ26/M24 1416 12 118 0.5 5-M10*1 350 111.32.1250
WDA-111-1250-02 1126 1176 1440 1370 1324 80 70 90 80 32-Φ24/M22 32-Φ24M22 1428 12 119 -0.5 5-M10*1 309 JW□1250.22A
WDA-111-1254-01 1100 1160 1452 1415 1345 100 84 115 100 18-Φ21 24-Φ21 1440 6 240 0 4-M8*1 502 1797/1100G
